Claude Usage Widget

A lightweight macOS desktop widget that tracks your Claude usage limits and rate limits in real time. Know exactly when you’re about to hit Claude’s API usage cap — before it happens.

Claude Usage Widget demo — live usage tracking

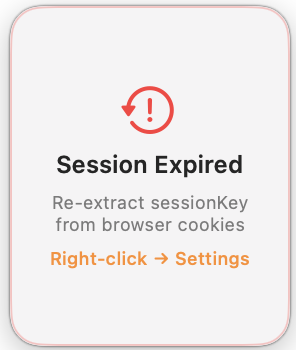

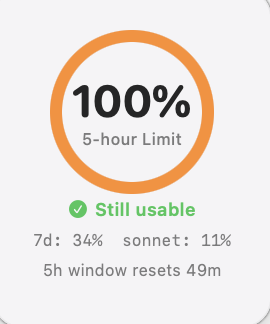

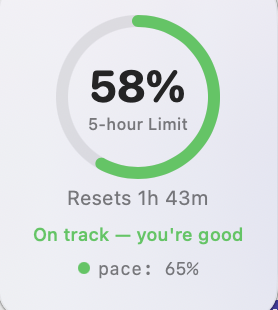

Widget — on track     Widget — compact mode     Widget — still usable     Widget — session expired

Why This Exists

Claude usage limits are easy to hit without noticing. This widget keeps the important signals visible at all times:

No tab switching. No guesswork.

Features

Widget showing on-track status Widget in compact mode Widget showing still usable Widget showing session expired
On track — plenty of room Compact mode Window full — still usable Session expired — re-authenticate

Install

Four ways to get the widget — pick the one that fits:

brew install --cask rishi-banerjee1/ai-tools/claude-usage-widget

Don’t have Homebrew? Install it first: brew.sh

Option 2: One-Command Install

curl -fsSL https://raw.githubusercontent.com/rishi-banerjee1/claude-usage-widget/main/install.sh | bash

Downloads the pre-built app, installs to /Applications, removes Gatekeeper quarantine, and launches it. No build tools needed.

Option 3: Download from GitHub Releases

  1. Go to Releases
  2. Download ClaudeUsage.app.zip
  3. Unzip and move ClaudeUsage.app to /Applications
  4. Double-click to launch

macOS says “unidentified developer”? Right-click the app → Open → click Open again. That’s it — you only need to do this once.

Option 4: Build from Source

Requires macOS 13+ and Xcode Command Line Tools (xcode-select --install).

git clone https://github.com/rishi-banerjee1/claude-usage-widget.git
cd claude-usage-widget
chmod +x build.sh run.sh setup.sh generate-icon.sh
./build.sh
./setup.sh          # Interactive credential setup
open build/ClaudeUsage.app

Connect to Your Claude Account

The widget needs two pieces of info from your Claude account (one-time setup, takes ~2 minutes):

  1. Launch the app — a small widget appears on your desktop
  2. Right-click the widget → Settings
  3. Paste your Session Key and Organization ID (see How to Get Your Credentials for step-by-step)
  4. Click Save

That’s it — the widget shows your live usage data.

Session key expired? The widget shows a red border when this happens. Just right-click → Settings → paste a fresh key. Your Org ID never expires.

Usage

Action How
Open Settings Right-click → Settings
Refresh Right-click → Refresh
Quit Right-click → Quit
Move widget Click + drag
Compact / Full Size Double-click widget, or right-click → Compact / Full Size
Change metric Settings → Display Metric

Choosing a Metric

Metric Best For
5-Hour (Recommended) Daily pacing — tells you if you can keep chatting right now
7-Day (All Models) Weekly budgeting — tracks total weekly allowance
7-Day (Sonnet Only) Heavy Sonnet usage tracking

How to Get Your Credentials

You need two things from your browser. Here’s how to find them:

Session Key

  1. Open claude.ai in Chrome (make sure you’re logged in)
  2. Press Cmd + Option + I to open Developer Tools
  3. Click the Application tab at the top
  4. In the left sidebar, expand Cookies → click https://claude.ai
  5. Find the row named sessionKey → double-click the Value column → copy it

Session keys expire every few days. When the widget shows a red border, just paste a fresh key in Settings.

Organization ID

  1. Still in Developer Tools, click the Network tab at the top
  2. Send any message in a Claude chat
  3. Look at the request URLs that appear — find one containing /organizations/
  4. The long code after /organizations/ is your Org ID (looks like xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx)

Your Org ID never expires — you only need to do this once.

Security & Privacy

Principle Detail
No browser access The app never reads your cookies or browser data — you paste the key yourself
Masked input Session key is hidden when you type it and never logged
Keychain storage Session key stored securely in macOS Keychain — no repeated password prompts
No telemetry Zero analytics, zero tracking. The app only talks to claude.ai
Cloudflare-aware Handles Cloudflare security checks gracefully — won’t falsely report your session as expired
Smart polling Pauses API calls when session expires — resumes when you save fresh credentials
Open source Read every line of setup.sh and ClaudeUsageApp.swift
Understanding Claude Limits
Claude enforces two independent limits: ### 5-Hour Rolling Window - Tracks the last 5 hours of usage - Recovers automatically as time passes - Most useful for daily pacing - If it hits 100% — you're locked out until older messages age past the 5-hour mark ### 7-Day Weekly Limit - Total weekly allowance across all models - Hard reset once per week - If it hits 100% — you're done until the weekly reset regardless of the 5-hour limit There's also a **7-Day Sonnet-only** metric for tracking that model separately. ### Status Colors (Pace Tracking) The widget compares your actual usage vs expected usage based on elapsed time: | Color | Meaning | Example | |-------|---------|---------| | 🟢 Green | More than 5% **below** expected pace | 2h into 5h window, at 30% (expected: 40%) | | 🟠 Orange | Within **±5%** of expected pace | 2h into 5h window, at 38% (expected: 40%) | | 🔴 Red | More than 5% **above** expected pace | 2h into 5h window, at 60% (expected: 40%) | ### Status Messages | Message | Meaning | |---------|---------| | Plenty of room | Under 30%, on track | | On track — you're good | On track, above 30% | | On pace — be mindful | Roughly at expected pace | | Above pace — slow down | Burning faster than expected | | Almost out — slow down | Above 90%, exceeding pace | | Limit reached — wait for reset | 100% — rate-limited |
What Happens When setup.sh Can't Auto-Fetch
Sometimes `setup.sh` can't automatically fetch your org ID. Here's why and what to do: ### Cloudflare Blocks The Claude API sits behind Cloudflare, which occasionally challenges `curl` requests with a 403 page. **This does NOT mean your session key is invalid.** - `setup.sh` will detect the Cloudflare block and tell you - It will ask you to enter your org ID manually instead (with step-by-step instructions) - The widget app itself uses macOS `URLSession` which passes through Cloudflare — so the widget will work fine even if `curl` was blocked ### Expired Session Key If the session key you pasted has already expired: - `setup.sh` will detect the 401/403 error and tell you it's expired - You'll be prompted to paste a fresh key and try again - If it still fails, you can save anyway — the widget will show "Session Expired" and prompt you to update later ### Network Issues If your network is down or the API is unreachable: - `setup.sh` offers manual entry as a fallback - The widget retries with exponential backoff (1s → 2s → 4s) up to 3 times
Manual Setup (Alternative to setup.sh)
If you prefer not to use the setup script: 1. **Right-click** the widget → **Settings...** 2. Paste your **Session Key** (from browser cookies — see [How to Get Your Credentials](#how-to-get-your-credentials)) 3. Paste your **Organization ID** (from DevTools Network tab, or env var) 4. Select which metric to display 5. Click **Save** ### Environment Variable Fallback ```bash export CLAUDE_SESSION_KEY="sk-ant-sid01-..." export CLAUDE_ORGANIZATION_ID="xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" open build/ClaudeUsage.app ```
How It Works (Technical)
The widget polls the Claude API every 30 seconds: ``` GET https://claude.ai/api/organizations/{orgId}/usage Cookie: sessionKey={key} User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) ClaudeUsageWidget/1.0 ``` **Architecture:** Single-file Swift app (`ClaudeUsageApp.swift`, ~1610 lines) — no Xcode project, no dependencies, no package manager. Compiles with `swiftc` directly. **Key components:** - `FloatingWidgetPanel` — borderless `NSPanel` (always-on-top, all Spaces, draggable) - `WidgetView` — SwiftUI with 4 states + compact/full mode, data, setup needed, session expired, loading - `WidgetPanelController` — manages lifecycle, persists position, handles compact toggle + panel resize - `AppDelegate` — fetching, 30s timer, retry logic, Cloudflare detection

Troubleshooting

Issue Fix
“Setup Needed” Right-click the widget → Settings → enter your credentials
“Session Expired” (red border) Right-click → Settings → paste a fresh session key. Your Org ID is remembered.
Widget not visible The app has no dock or menubar icon — just the floating widget. Try relaunching the app.
Widget too big Double-click to switch to compact mode (just the ring). Double-click again to restore.
Data not loading Usually an expired session key — right-click → Settings → paste a fresh one
Stuck at same % That’s accurate — usage recovers gradually over the time window. Try switching metrics via right-click.
macOS blocks the app Right-click the app → Open → click Open again
Build fails (SwiftBridging) sudo rm -rf /Library/Developer/CommandLineTools && xcode-select --install
Widget gone after restart Launch at Login is enabled by default. If you disabled it, re-enable via right-click → Settings

Roadmap

Credits

Built by @rishi-banerjee1.

License

MIT
